  2. Ensemble moteur et contrôleurs haute performance sur EtherCAT
  3. Module Ethercat EZI-IO
Module Ethercat - Fastech logo ethercat

Module Ethercat EZI-IO

Module :
EtherCAT
Tension :
24 VDC ±10%
Courant :
150 - 300mA
Type Tension d'entrée Courant Signal d'entrée Signal de sortie Méthode d'isolement du signal Affichage LED PDF Prix
Ezi-IO-EC-I16N-X 24 VDC ±10% Max. 150mA (Except I/O current) - 16CH Input (Photocoupler Input, NPN/ PNP) - 24VDC - Max. 15mA/CH - No Isolation - Power status (PWR) - EtherCAT Communication status (RUN) - EtherCAT Communication connection status (ECAT IN, ECAT OUT) - I/O status (0~15)
Ezi-IO-EC-I16P-X 24 VDC ±10% Max. 150mA (Except I/O current) - 16CH Input (Photocoupler Input, NPN/ PNP) - 24VDC - Max. 15mA/CH - No Isolation - Power status (PWR) - EtherCAT Communication status (RUN) - EtherCAT Communication connection status (ECAT IN, ECAT OUT) - I/O status (0~15)
Ezi-IO-EC-O16N-X 24 VDC ±10% Max. 150mA (Except I/O current) - - 16CH Output (FET Output, NPN/PNP) - 24VDC - Max. 200mA/CH No Isolation - Power status (PWR) - EtherCAT Communication status (RUN) - EtherCAT Communication connection status (ECAT IN, ECAT OUT) - I/O status (0~15)
Ezi-IO-EC-O16P-X 24 VDC ±10% Max. 150mA (Except I/O current) - - 16CH Output (FET Output, NPN/PNP) - 24VDC - Max. 200mA/CH No Isolation - Power status (PWR) - EtherCAT Communication status (RUN) - EtherCAT Communication connection status (ECAT IN, ECAT OUT) - I/O status (0~15)
Ezi-IO-EC-I8O8N-X 24 VDC ±10% Max. 150mA (Except I/O current) - 8CH Input (Photocoupler Input, NPN/ PNP) - 24VDC - Max. 15mA/CH - No Isolation - Power status (PWR) - EtherCAT Communication status (RUN) - EtherCAT Communication connection status (ECAT IN, ECAT OUT) - I/O status (0~15)
Ezi-IO-EC-I8O8P-X 24 VDC ±10% Max. 150mA (Except I/O current) - 8CH Input (Photocoupler Input, NPN/ PNP) - 24VDC - Max. 15mA/CH - No Isolation - Power status (PWR) - EtherCAT Communication status (RUN) - EtherCAT Communication connection status (ECAT IN, ECAT OUT) - I/O status (0~15)
Ezi-IO-EC-I32N-X 24 VDC ±10% Max. 150mA (Except I/O current) - 32CH Input (Photocoupler Input, NPN/ PNP) - 24VDC - Max. 15mA/CH - Photocoupler Isolation - Control Power status (PWR) - EtherCAT Communication status (RUN) - EtherCAT Communication connection status (ECAT IN, ECAT OUT) - I/O status (0~31)
Ezi-IO-EC-I32P-X 24 VDC ±10% Max. 150mA (Except I/O current) - 32CH Input (Photocoupler Input, NPN/ PNP) - 24VDC - Max. 15mA/CH - Photocoupler Isolation - Control Power status (PWR) - EtherCAT Communication status (RUN) - EtherCAT Communication connection status (ECAT IN, ECAT OUT) - I/O status (0~31)
Ezi-IO-EC-O32N-X 24 VDC ±10% Max. 150mA (Except I/O current) - - 32CH Output (FET Output, NPN/PNP) - 24VDC -,Max. 200mA/CH Photocoupler Isolation - Control Power status (PWR) - EtherCAT Communication status (RUN) - EtherCAT Communication connection status (ECAT IN, ECAT OUT) - I/O status (0~31)
Ezi-IO-EC-O32P-X 24 VDC ±10% Max. 150mA (Except I/O current) - - 32CH Output (FET Output, NPN/PNP) - 24VDC -,Max. 200mA/CH Photocoupler Isolation - Control Power status (PWR) - EtherCAT Communication status (RUN) - EtherCAT Communication connection status (ECAT IN, ECAT OUT) - I/O status (0~31)
Ezi-IO-EC- I16O16N-X 24 VDC ±10% Max. 150mA (Except I/O current) - 16CH Input (Photocoupler Input, NPN/ PNP) - 24VDC - Max. 15mA/CH - Photocoupler Isolation - Control Power status (PWR) - EtherCAT Communication status (RUN) - EtherCAT Communication connection status (ECAT IN, ECAT OUT) - I/O status (0~15/0~15)
Ezi-IO-EC- I16O16P-X 24 VDC ±10% Max. 150mA (Except I/O current) - 16CH Input (Photocoupler Input, NPN/ PNP) - 24VDC - Max. 15mA/CH - Photocoupler Isolation - Control Power status (PWR) - EtherCAT Communication status (RUN) - EtherCAT Communication connection status (ECAT IN, ECAT OUT) - I/O status (0~15/0~15)

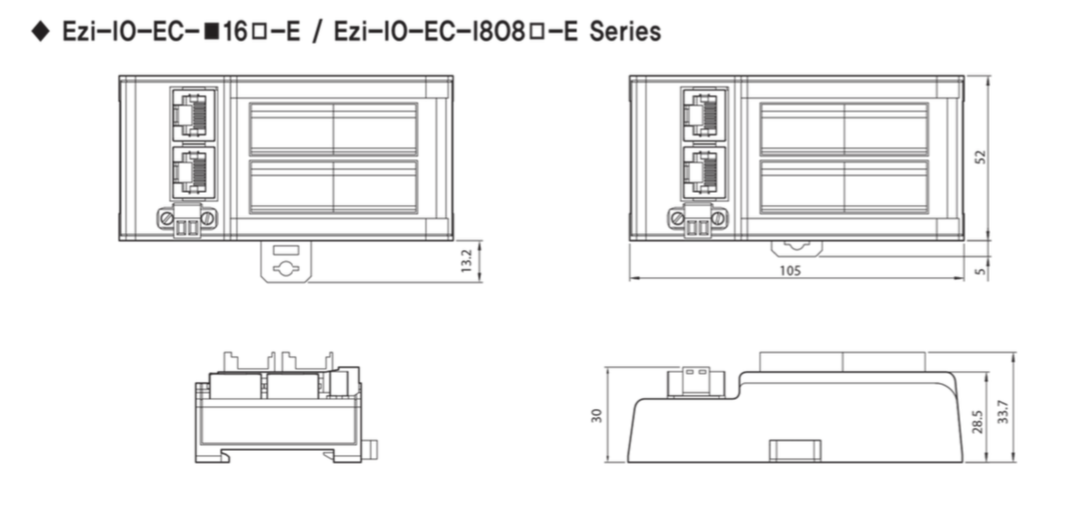

2d

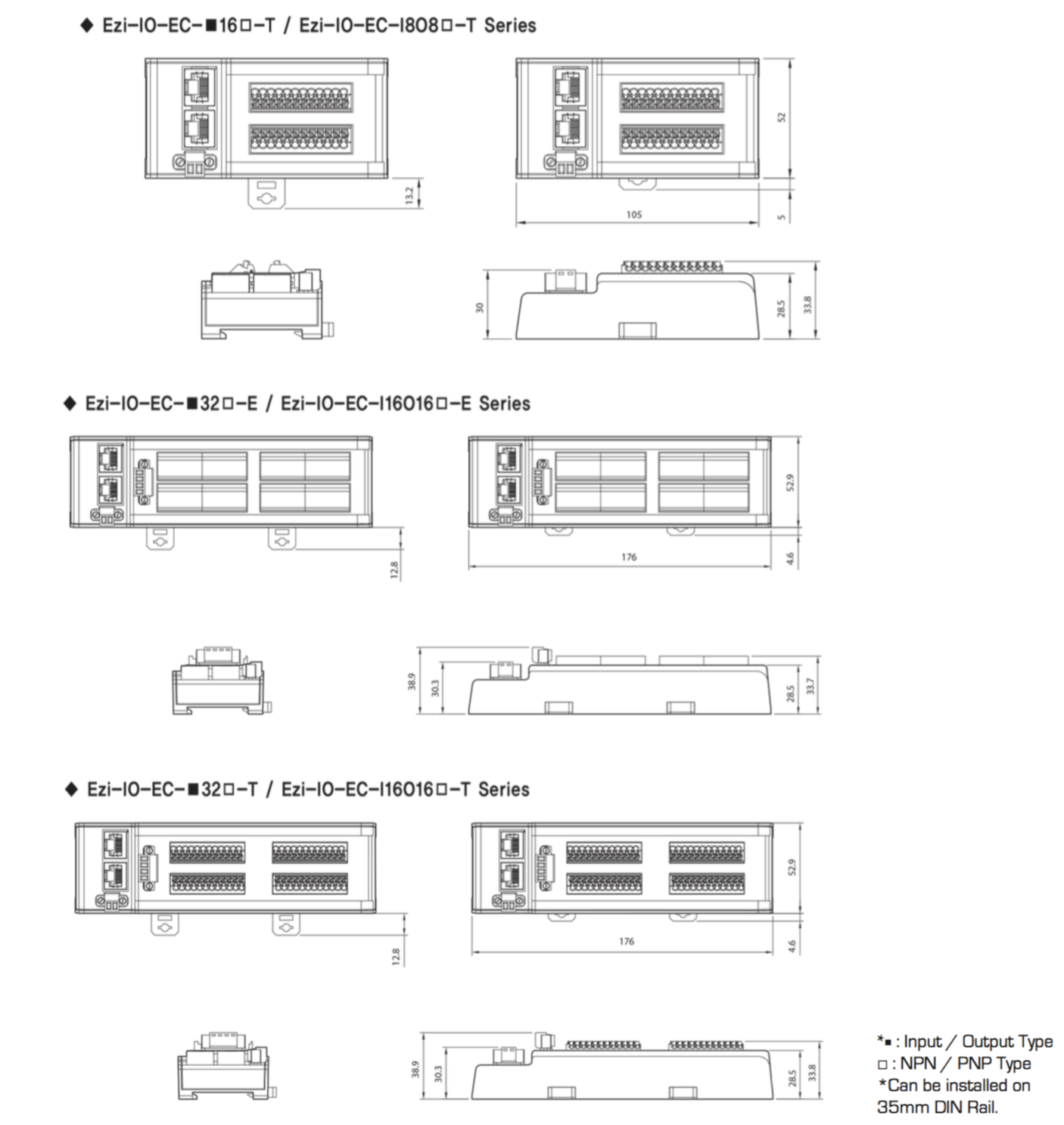

2d

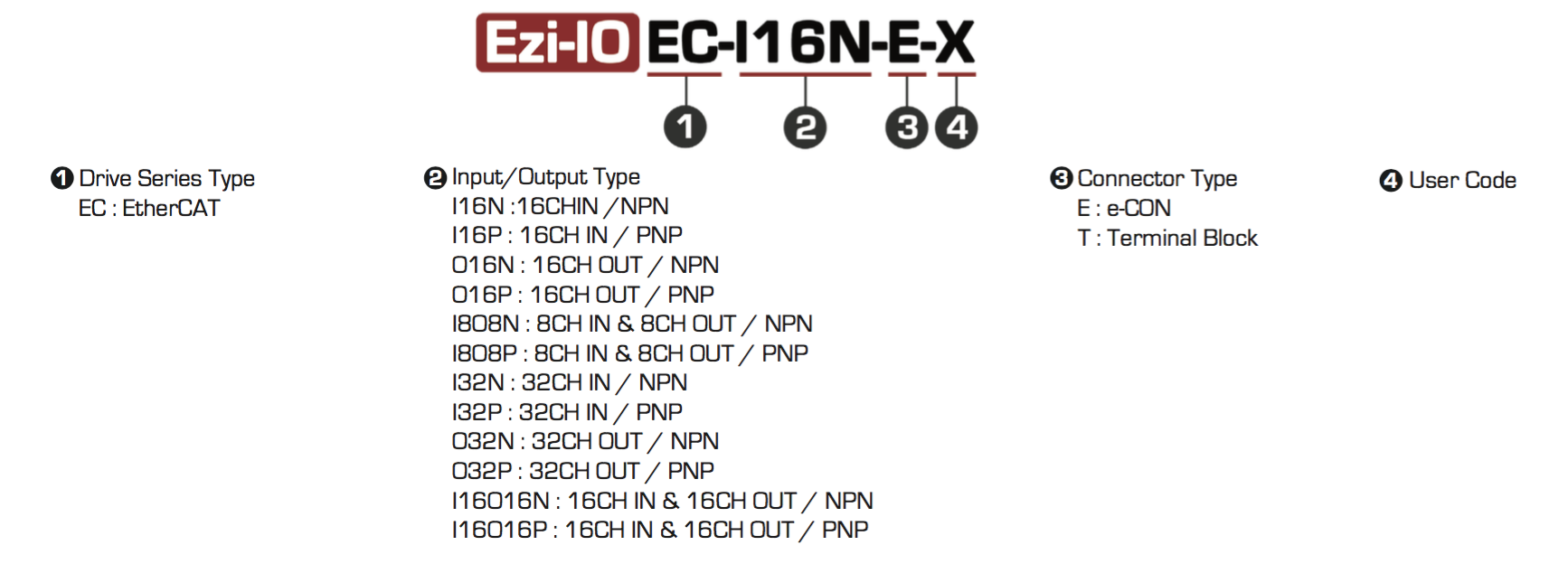

codification
