Moteur pas à pas avec variateur Ezi-SERVO II EtherCAT-4X


Bride :
20 - 60 mm
Couple :
0,016 - 2,4 Nm
Courant :
0,5 - 4 A
Type de moteurs Type de variateurs NEMA Bride (mm) Couple (Ncm) Courant (A) Longueur (mm) Poids (g) PDF Prix
EzM2-20-20M EzS2-EC-4X, 3X, 2X 8 20 1,6 0,5 28 80
EzM2-20-20L EzS2-EC-4X, 3X, 2X 8 20 2,5 0,5 38 104
EzM2-28-28S EzS2-EC-4X, 3X, 2X 11 28 6,9 0,95 32 147
EzM2-28-28M EzS2-EC-4X, 3X, 2X 11 28 9,8 0,95 45 204
EzM2-28-28L EzS2-EC-4X, 3X, 2X 11 28 11,8 0,95 50 232
EzM2-35-35M EzS2-EC-4X, 3X, 2X 14 35 13 1,5 32 194
EzM2-35-35L EzS2-EC-4X, 3X, 2X 14 35 23 1,5 36 226
EzM2-42-42S EzS2-EC-4X, 3X, 2X 17 42 32 1,2 34 294
EzM2-42-42M EzS2-EC-4X, 3X, 2X 17 42 44 1,2 40 357
EzM2-42-42L EzS2-EC-4X, 3X, 2X 17 42 50 1,2 48 426
EzM2-42-42XL EzS2-EC-4X, 3X, 2X 17 42 65 1,2 60 564
EzM2-56-56S EzS2-EC-4X, 3X, 2X 23 56 64 3,0 46 608
EzM2-56-56M EzS2-EC-4X, 3X, 2X 23 56 100 3,0 55 784
EzM2-56-56L EzS2-EC-4X, 3X, 2X 23 56 150 3,0 80 1230
EzM2-60-60S EzS2-EC-4X, 3X, 2X 24 60 88 4,0 47 693
EzM2-60-60M EzS2-EC-4X, 3X, 2X 24 60 128 4,0 56 856
EzM2-60-60L EzS2-EC-4X, 3X, 2X 24 60 240 4,0 85 1419
Spécifications du moteur
Résistance d'isolement (Mohm) 100 MIN.(at 500 VDC)
Classe d'isolation CLASS B(130°C)
Température de fonctionnement (°C) 0 à 55
Spécifications du variateur
Alimentation 24 VDC ±10%
Méthode de contrôle Closed loop control with 32bit MCU
Consommation de courant Max 500mA (Except motor current)
Température ambiante In use : 0 - 50°C / In storage : -20 - 70°C
Humidité In use : 35 - 85% RH (Non-Condensing) / In storage : 10 -90% RH (Non-Consending)
Vib. Resist 0,5g
Vitesse de rotation 0 - 3,000 (rpm) *1
Résolution (ppr) Encoder F : 4,000(ppr) : 500 1,000 1,600 2,000 3,600 4,000 5,000 6,400 7,200 10,000 Encoder A : 10,000(ppr) : 500 1,000 1,600 2,000 3,600 5,000 6,400 7,200 10,000 Encoder D : 16,000(ppr) : 500 1,000 1,600 2,000 3,600 5,000 6,400 7,200 10,000 16,000 Encoder B : 20,000(ppr) : 500 1,000 1,600 2,000 3,600 5,000 6,400 7,200 10,000 20,000 (Selectable by parameter) *2
Fonctions de protection Over Current Error, Over Speed Error, Position Tracking Error, Over Load Error, Over Tempe- rature Error, Over Regenerated Voltage Error, Motor Connect Error, Encoder Connect Error, In-Position Error, ROM Error, Position Overflow Error
Affichage LED Power status, In-Position status, Servo On status, Alarm status
EtherCAT - Protocole pris en charge CoE (CiA 402 Drive Profile), FoE (Firmware Download)
EtherCAT - Mode pris en charge Profile Position Mode, Homing Mode, Cyclic Synchronous Position Mode
EtherCAT - Synchronisation Free Run, SM Event, DC SYNC Event
IO Signal - Signaux d'entrée 3 dedicated inputs (LIMIT+, LIMIT-, ORIGIN)
IO Signal - Signaux de sortie Brake
*1 : Up to the resolution of 10,000[ppr], maximum speed can be reached by 3,000[rpm] and with the resolution more than 10,000[ppr], maximum speed shall be reduced accordingly.*2 : When selected resolution is more than encoder resolution, motor shall be operated by microstep between pulses.

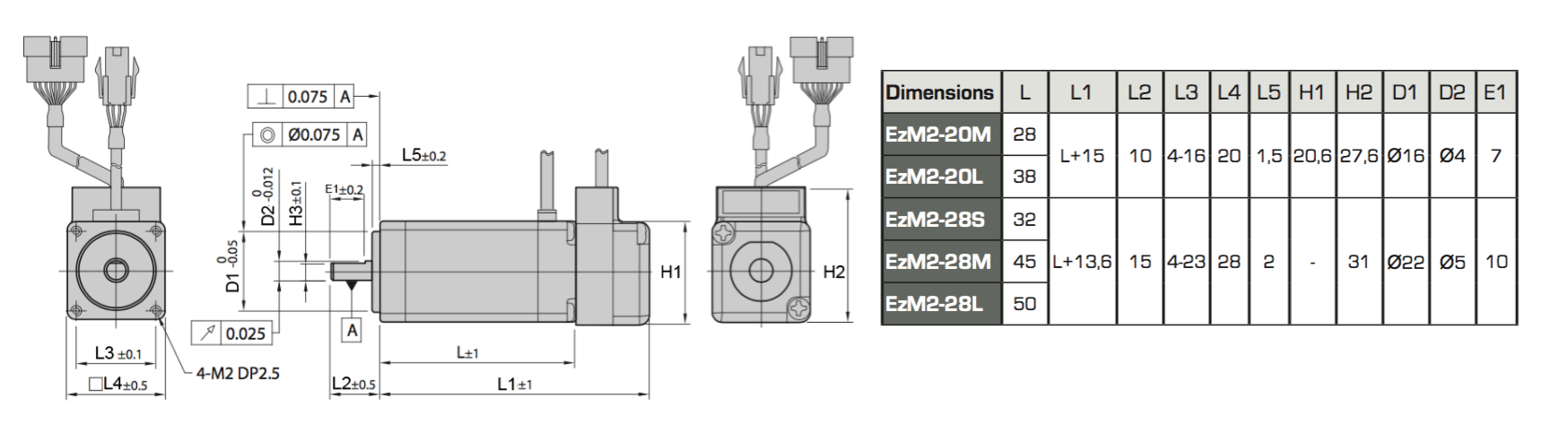

2d

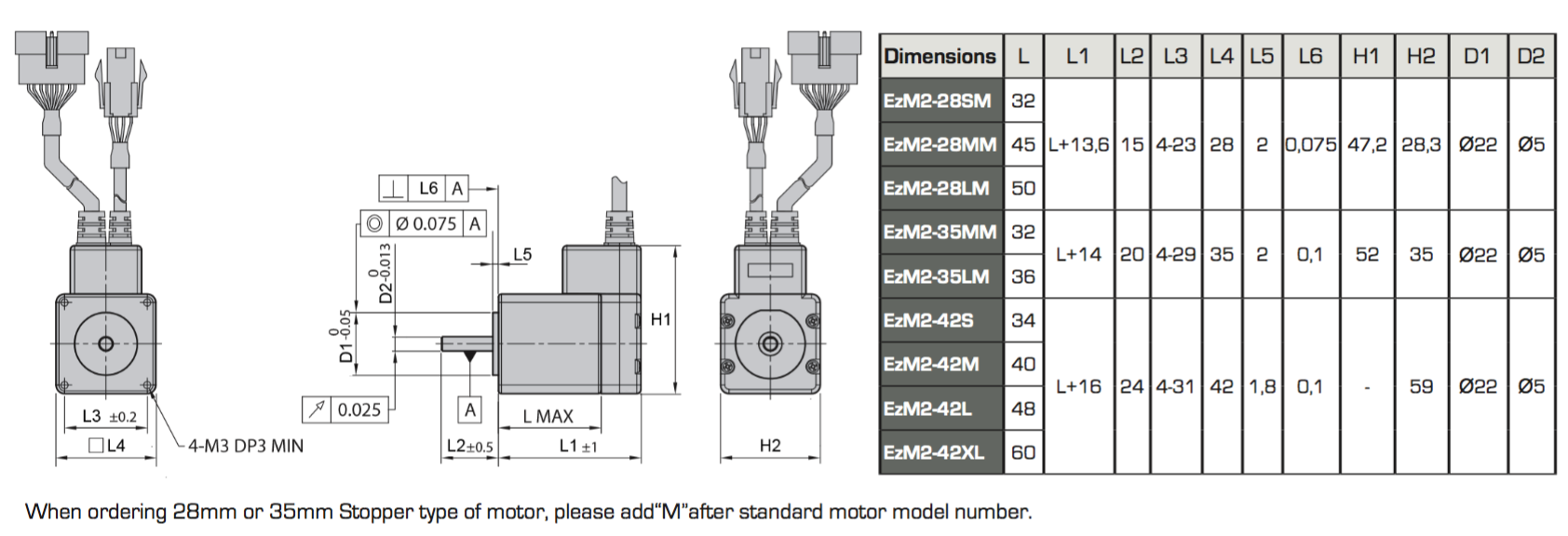

2d

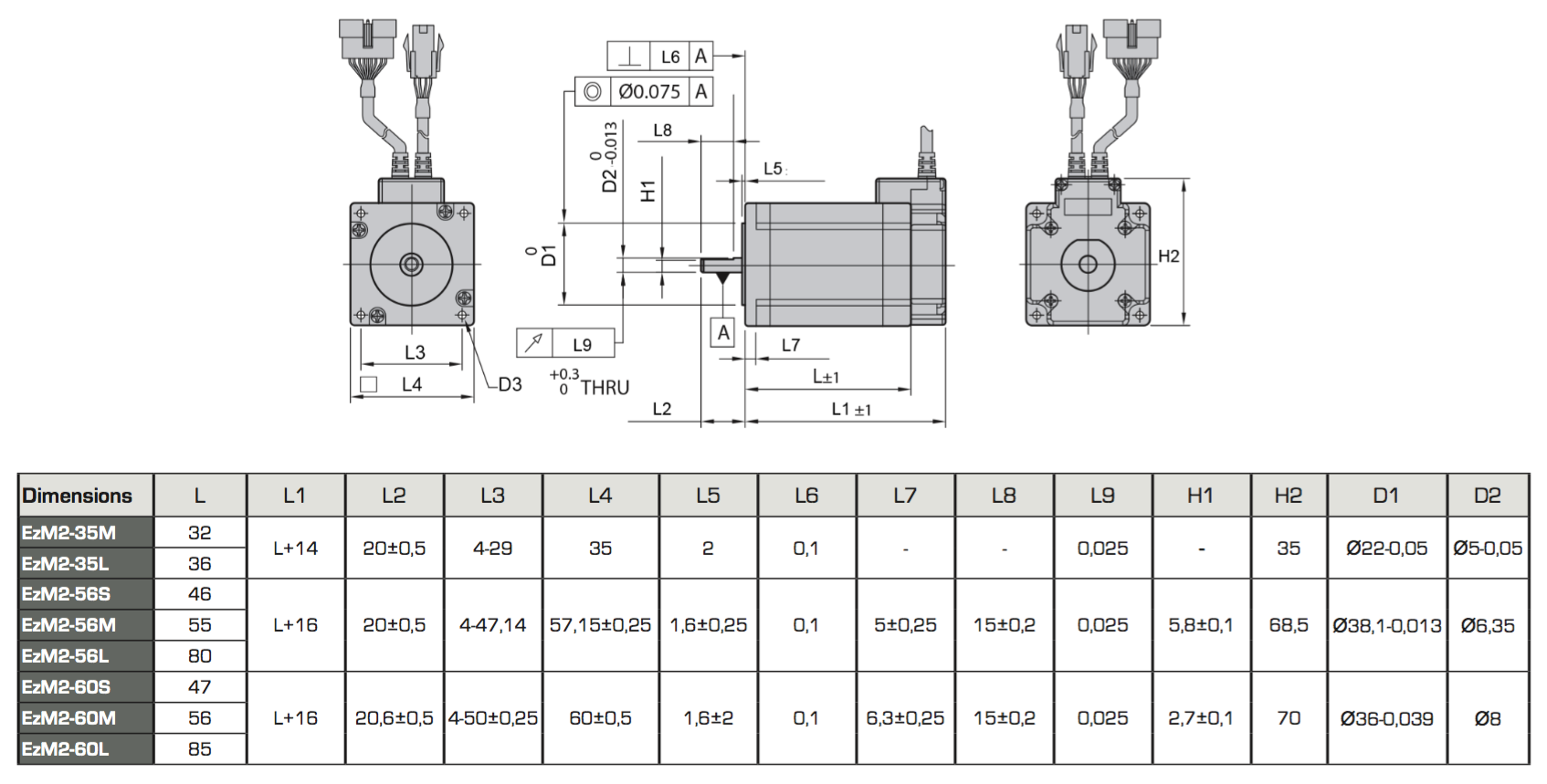

2d

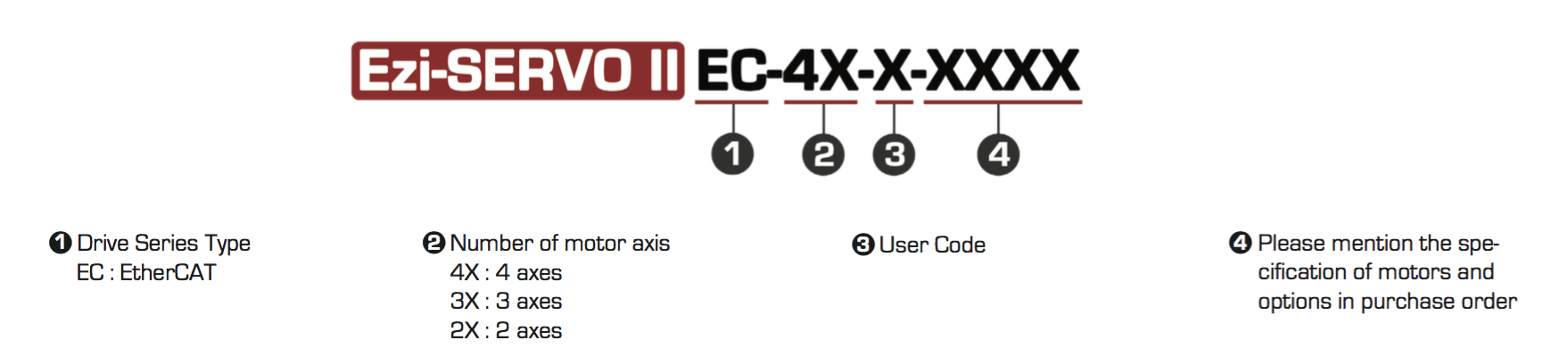

codification
