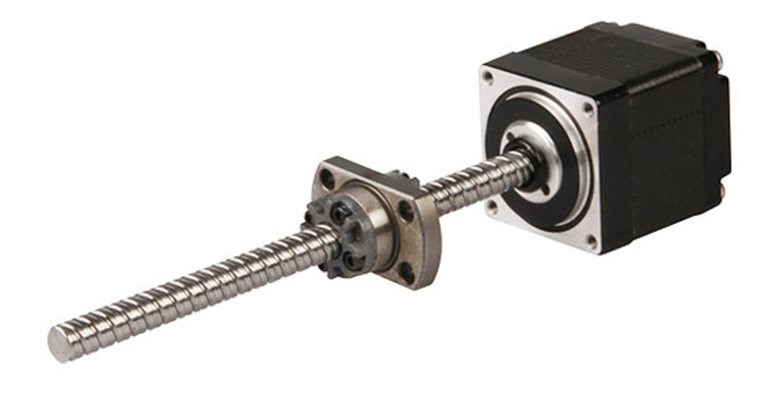

| Ball Screw Type | 0601 | 0602 | 0606 | 0610 | 0504 |
|---|---|---|---|---|---|
| Ball Size | ∅0,8 | ∅0,8 | ∅0,8 | ∅1,2 | ∅0,8 |
| Number of Thread | 1 | 1 | 2 | 2 | 1 |
| Thread Direction | Right | ||||
| Shaft Root Diameter | ∅5,3 | ∅5,1 | ∅5,2 | ∅5,0 | ∅4,3 |
| Number of Circuit | 3,7x1 | 2,7x1 | 1,2x2 | 2,7x1 | |
| Shaft, Nut Material | SCM415H | ||||
| Surface Hardness | HRC58-62 | ||||
| Anti-Rust Treatment | Anti-rust Oil | ||||
| Grade | C7 | ||||

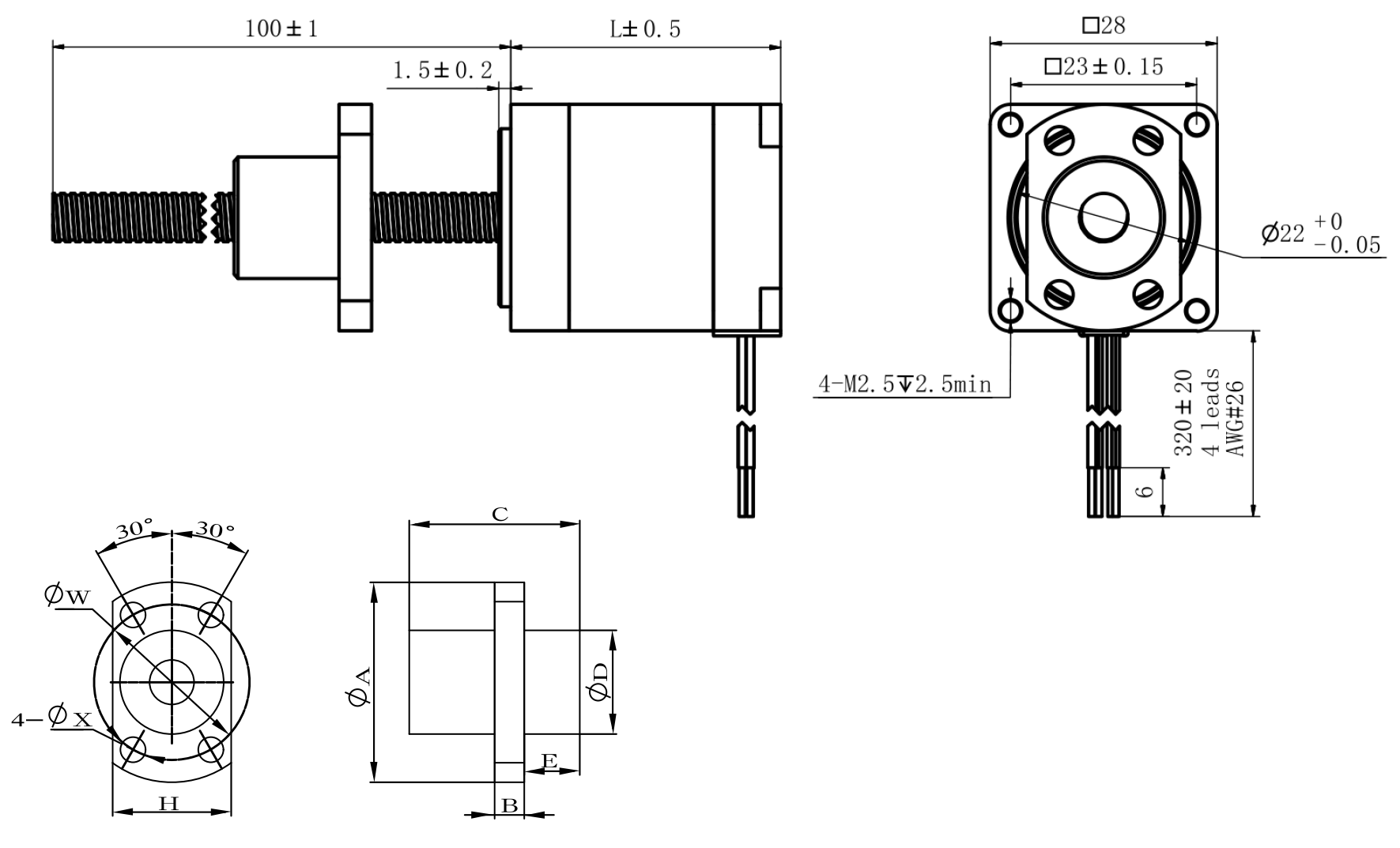

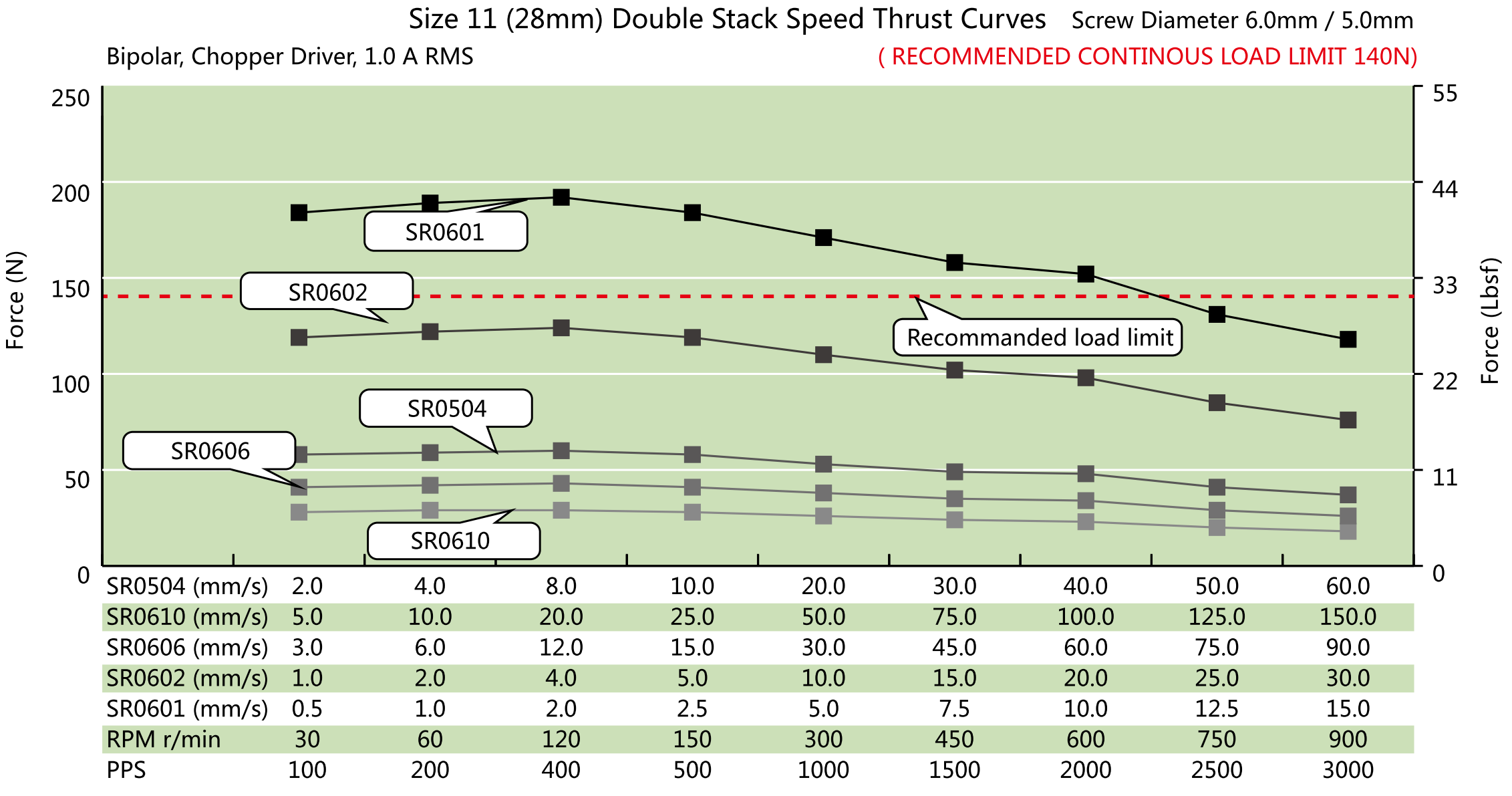

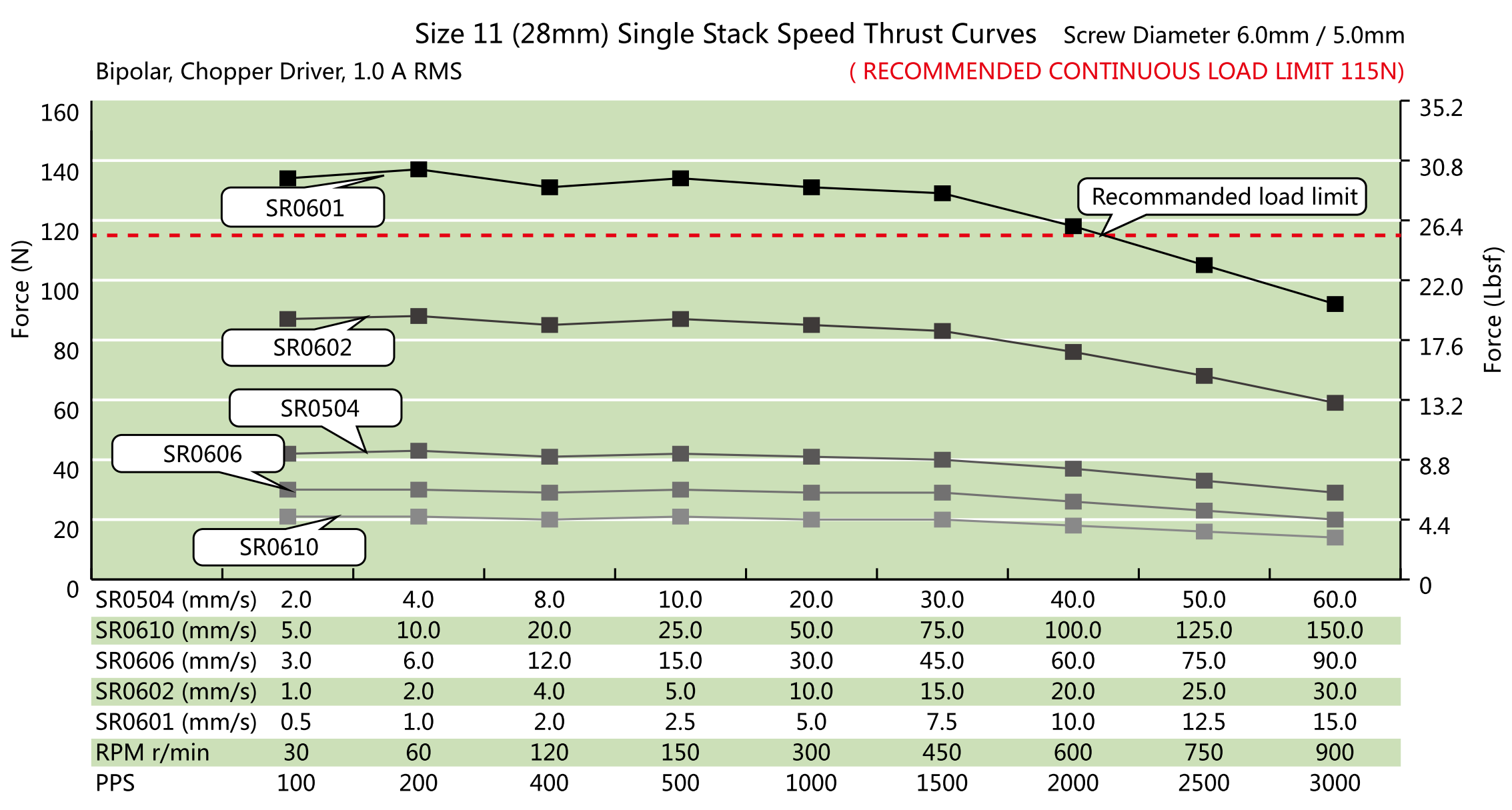

| Nut Size | A | B | C | D | H | W | X | E | Position Accuracy | Total Run Out | Axial Play | Dynamic Load (N) | Static Load (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0601 | 26 | 4 | 17 | 13 | 16 | 20 | 3,4 | ±0,05 | 0,12 | 0,02 | 680 | 1200 | |
| 0602 | 28 | 4 | 17 | 15 | 19 | 22 | 3,4 | ±0,05 | 0,12 | 0,02 | 750 | 1450 | |
| 0606 | 27 | 4 | 17 | 14 | 16 | 21 | 3,4 | 5 | ±0,05 | 0,12 | 0,02 | 870 | 1600 |
| 0610 | 27 | 4 | 23 | 14 | 16 | 21 | 3,4 | 7,5 | ±0,05 | 0,12 | 0,02 | 950 | 1650 |
| 0504 | 24 | 4 | 22 | 12 | 16 | 18 | 3,4 | ±0,05 | 0,12 | 0,02 | 470 | 720 |
|
|
|
|
