| Ball Screw Type | 0401 | 0402 |
|---|---|---|
| Ball Size | ∅0,8 | ∅0,8 |
| Number of Thread | 1 | 1 |
| Thread Direction | Right | |
| Shaft Root Diameter | ∅3,3 | ∅3,3 |
| Number of Circuit | 3,7x1 | 2,7x1 |
| Shaft, Nut Material | SCM415H | |
| Surface Hardness | HRC58-62 | |
| Anti-Rust Treatment | Anti-rust Oil | |

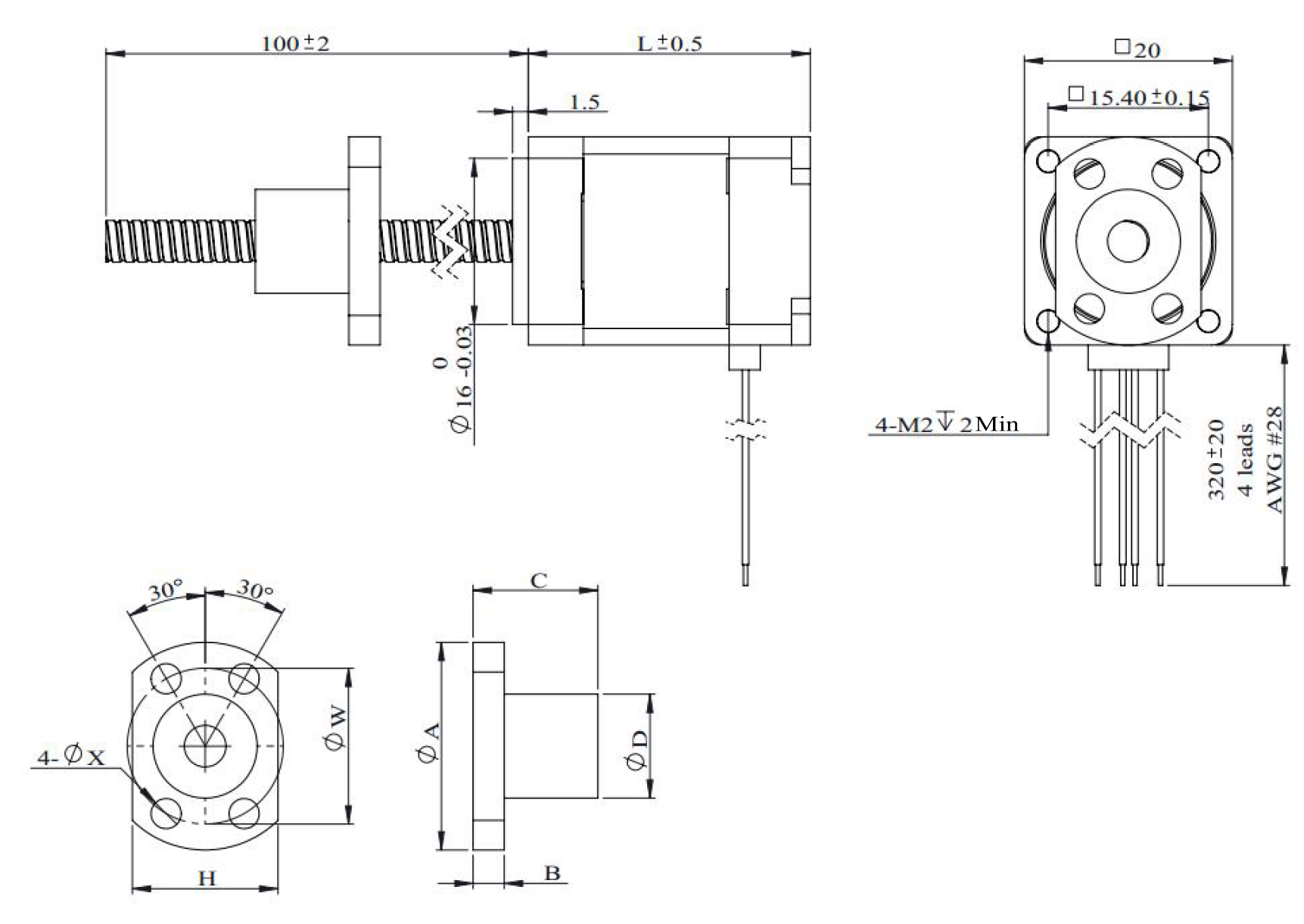

| Nut Size | A | B | C | D | H | W | X | Grade | Position Accuracy | Total Run Out | Axial Play | Dynamic Load (N) | Static Load (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0401 | 23 | 4 | 17 | 11 | 15 | 17 | 3,4 | C7 | ±0,05 | 0,12 | 0,02 | 560 | 790 |
| 0402 | 23 | 4 | 19 | 11 | 15 | 17 | 3,4 | C7 | ±0,05 | 0,12 | 0,02 | 420 | 570 |
|
|
|
|
